CAM Functions in DeskCNC:

• Open and process DXF, STL, Gerber, Excellon files and G-code files.
• Process point cloud data into surfaces and .stl files.
• Create and simulate CNC programs for pocketing, drilling, contouring, 3D surface machining.
• Scan images and load image files.
• Engrave raster to vector conversions directly to cnc code.
• Modify image with powerful and fast filter and edit tools.
• Carve 3D images from bitmap files.
• Process extended Gerber and Excellon PCB files for drilling and trace isolation.
• Compensates for flat, bull, ball, and V tipped tools.
• Automatically vectorizes DXF Text.
• Add True Type Font Text (comes with a single line TTF) around an Arc etc.
• Configurable post processor.
• 4Axis for foam cutting.

SECONDLY, IT'S A MACHINE CONTROL PROGRAM

An optional USB port adaptor is also available.

• 4 Axis Step and direction controller with serial port interface.
• No special computer hardware requirements, (Min P2 400Mhz and 50 Mb).
• This package will run under Windows XP, 2000 and 98SE.
• Over 125 000 steps per second with constant velocity contouring!.
• Supports G41/G42 cutter compensation.
• Supports tool and work offsets.
• Drilling cycles are supported.
• Spindle speed control from the program (0-10V signal).
• 3 Axis (X,Y,Z) with a 4th (A) rotary axis.
• 2Axis (Z,X) lathe environment.
• 3Axis environment with a slaved axis (Gantry).
• Handwheel or lathe spindle encoder (threading) input available.
• Will support servo motors or stepper motors on all axes.
• Seven outputs available for Coolant, Mist, Spindle, Toolclamp etc.
• Inputs for Start, Stop, Pause, Home and Limit switches.

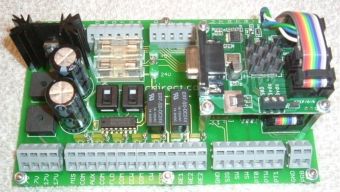

NEW DeskCNC BREAKOUT BOARD!

• Integrated 5V and 24V Power supply.
• Cage clamp terminals, no fiddling with screw terminals.
• Easy wiring.
• 7 24V 500mA outputs for Ancillary equipment.
• X, Y, Z, A Home inputs.
• Dedicated Start, Pause and Emergency stop.
• Spindle speed control, 0-10V.
• Dedicated encoder inputs.
• LED Output indication.

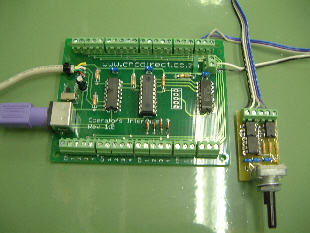

OPERATOR'S INTERFACE

• Build your own operators panel, connects easily between your PC and your keyboard.
• Up to 3 keystrokes per input
• Easily programmable, only takes a few seconds.
• Interface to 32 buttons on your operators panel.
• Rotary knob input option. Each knob requires two inputs
• Note pendant not included, build your own!

TOUCH PROBE - INTEGRATED TOUCH PROBING CYCLES !

TP 100-Touch Probe

• Probe is 5 way triggered and has a long-wearing .08" (2 mm) diameter, ruby tip.
• Rated for 10,000,000 points at 20,000 points per hour when used with DeskCNC software.
• DeskCNC software comes ready for the probe and tool length setting.
• Scan 3D surfaces and create machinable, 3D .Stl files.
• Automatic tool length measurement and setting.

EASYCNC-Manual

For those of new to CNC, we now offer the EASYCNC manual, it will tell you all about DeskCNC and more!

• The following topics are discussed:
• INTRODUCTION
  USING A COMPUTER
  CNC CONCEPTS
  SOFTWARE
  CNC MACHINE OPERATION
  G-CODE
  SCANNING AN IMAGE
  CREATING DRAWINGS
  USING A BIT MAP DRAW PROGRAM
  USING A BIT MAP IMAGE CONVERTER PROGRAM - BIT MAP TO G-CODE
  USING A CAD PROGRAM
  USING A CAM PROGRAM - DXF TO G-CODE
  APPENDIX A - DeskCNC

PRICING INFORMATION
	DeskCNC Software	R 2395.00
	DeskCNC Controller (No longer available)	R 1295.00
	DeskCNC Breakout Board (No longer available)	R 595.00
	Operators interface (No longer available) Rotary Knob (No longer Available)	R 695.00 R 165.00
	TP 100 Touch Probe and tool presetter.  (No longer available)	R 2995.00
	Easy CNC Manual (No longer available)	On Request

CONTACT US REGARDING PRICING FOR PACKAGE DEALS!
